Third Attempt at the [ 30-Rhombus S-S-O ]

On the 30-Rhombus Symmetric Solid Object

Section X - Third Attempt at the [ 30-Rhombus Symmetric Solid Object ]

In this Section , we shall make the 3rd attempt to construct the 30-Rhombus Symmetric Solid Object ] .

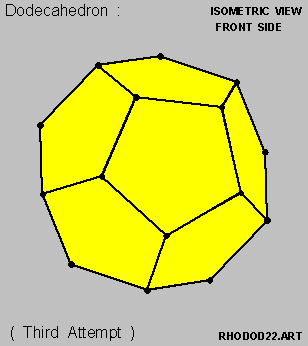

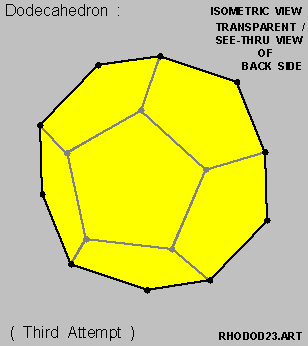

Let us now bring-in the Dodecahedron as shown below in this special orientation .

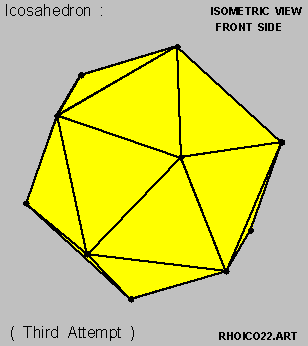

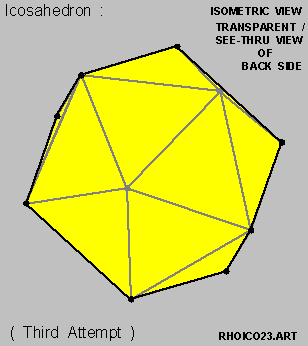

And we also bring-in the Icosahedron as shown below in a corresponding / matching orientation :

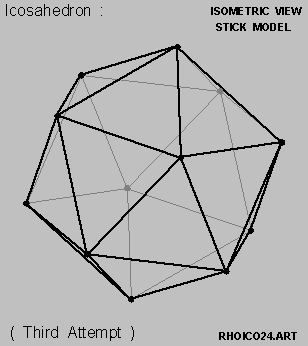

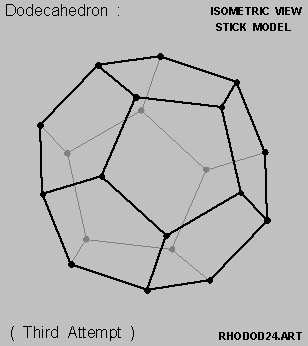

We then combine the 20 Nodal-Points of the Dodecahedron and the 12 Nodal-Points of the Icosahedron :

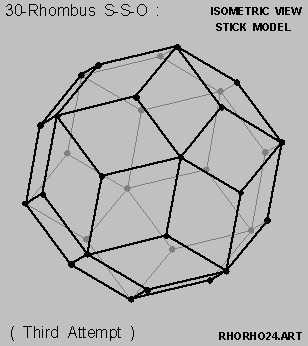

- to arrive at this 32 Nodal-Points Object as shown in the diagram in-the-middle below .

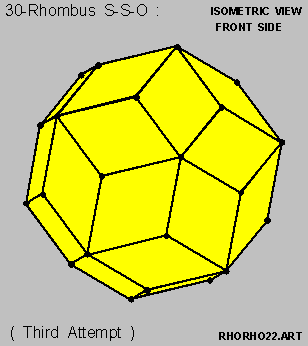

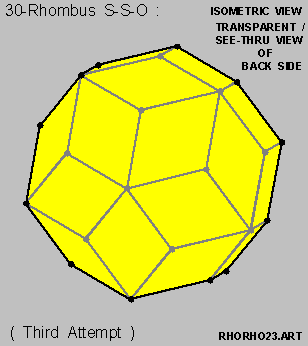

We then present this Third Version of the resultant [ 30-Rhombus Symmetric Solid Object ] :

And this looks alright !

Let us again identify :
- the point closest to the viewer's eye as the point [ Point A ] ,

  and
- the point farthest-away from the viewer's eye as the point [ Point B ] ;
  - as shown below .
Let us just state here that :
- the straight-line passing thru [ Point A ] and [ Point B ] is in fact an [ Axis of Penta-Symmetry ] .
And we shall again do the following :
- color the 5 Rhombuses sharing [ Point A ] as a common Nodal-Point in [ cyan-color ] ,
- color the 5 Rhombuses sharing [ Point B ] as a common Nodal-Point in [ blue-color ] ,
- color the 5 rhombuses adjacent to the 5 [ cyan-color rhombuses ] in [ purple-color ] ,
- color the 5 rhombuses adjacent to the 5 [ blue-color rhombuses ] in [ magenta-color ] ,
- color the remaining 10 rhombuses alternately in [ light-green / dark-green color ] ;
  - as shown below .
We certain hope that this will give the [ 30-Rhombus S-S-O ] a better 3-Dimensional feel .
