On Unique-Factorization Combinatorics via the Pascal Triangle

by Frank C. Fung ( 1st published in October, 2012. )

Top Of Page

Section XVII - Creating the 11 x 11 [ PASCAL Matrix ]

Summary for the Section :

• In this Section , we shall create the 11 x 11 [ PASCAL Matrix ] .

  And based on the [ PASCAL Matrix ] , we shall create in the next 2 Sections :

  • the 10 x 10 [ ALPHA Matrix ] in Section XVIII ,

    and

  • the 10 x 10 [ ETA Matrix ] in Section XIX .

  Thereafter in Section XX , we shall create the [ Z Matrix ] given by :

  • [ Z Matrix ] = [ ALPHA Matrix ] x [ ETA Matrix ]

  and :

  • the [ Z Matrix ] thus created shall be matrix version of our { Combinatorics Equation } in the last Section ,
    • ripe for further review and analysis in the Sections to follow .

go to Top Of Page

Creating the [ PASCAL Matrix ] :

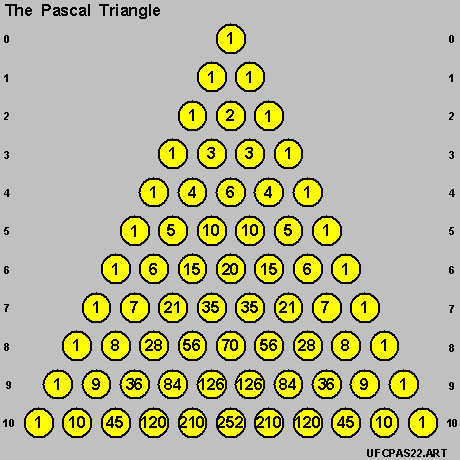

• Let us bring-in again the Pascal Triangle ,
  • as per the diagram on-the-left below ;

  and

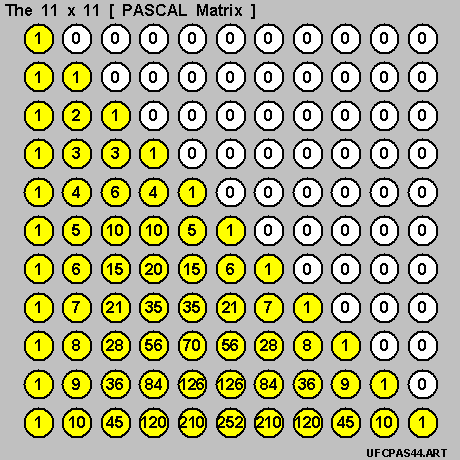

  • create the corresponding 11 x 11 [ PASCAL Matrix ] ,
    • as per the diagram on-the-right below .



  What we have done here is simply to :

  • take each row of Pascal Triangle and put it into the corresponding row in [ PASCAL Matrix ] ,
    • on a row-by-row basis ;

    and

  • for the empty spots to-the-right of the last element [ 1 ] on each row ,
    • we simply fill these up with a bunch of [ 0 ]'s .

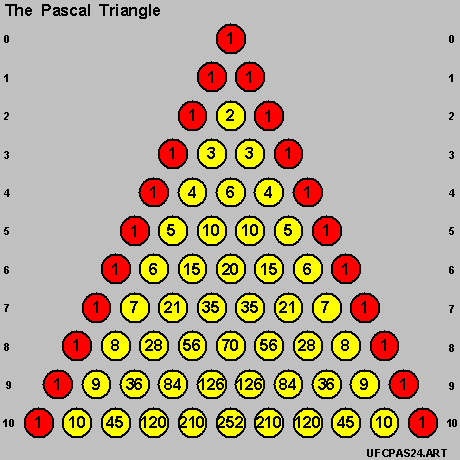

• We then also present this set of 2 diagrams below :



  • for the exact-same operation as done above ;
    • but possibly for slightly better clarity .
